| Module |
| Technical Items | Unit | Values |
| Pixel pitch | mm | 3 |
| LED Lamp | SMD | SMD2121 |
| Module size | mm | L192*H192*T13 |
| Pixels density | /m2 | 111111 |
| Pixel resolution | dots | 64x64=4096 |
| Pixel configuration | R/G/B | 1,1,1 |
| Drive type | | Constant current |
| Scan mode | | 1/32 scan |
| Port type | | HUB75 |
| Module weight | KG | 0.35 |
| Module working voltage | | 220VAC±15% |
| Module Max.Consumption | W | ≤ 20 |
| Display screen |
| Viewing angle | Deg. | 120o |
| Best viewing distance | m | 3-45 |
| Drive device | | 2016/5020/20167 |
| Module number per squire meter | PCS | 27.13 |
| Maximum power Consumption | W/ M2 | 1100 |
| Frame Frequency | HZ | ≥60 |
| Refresh frequency | HZ | ≥2000 |
| Brightness of white balance | CD/m2 | ≥1200 |
| Working environment temperature | 0C | -10~60 |
| Working environment humidity | RH | 10%~70% |
| Display working voltage | VAC | AC46~54HZ,220V±15%/110V±15% |
| Colour temperature | | 9500K-11500K |
| Gray degree | | ≥16.7M |
| Input signal | | RF S-Video RGB etc |
| Control system | | PCTV non-linearity card,DVI display card,Linsn control system |
| Mean free error time | Hours | >5000 |
| Lifetime | Hours | 100000 |
| Lamp failure frequency | | <0.0001 |
| Anti-jamming | | IEC801 |
| Safety | | GB4793 |
| Resist the electricity | | No breakdown by 1500V last 1min |
| Weight | KG/ M2 | 40(standard steel box) |
| IP Grade | | The back IP40,The front IP50 |
| Steel box size | mm | L576 x W576 x 80 |
Product Advantages:
High refresh rate: With NOVA control system,no scanning line when photographed.
High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect.
High resolution: The most apparent features of the new generation of LED display.
Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
High Brightness: 6000-8000cd/m2, brightness automatically adjusted.
High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time.
Long life span: over100,000hours, warranty at least 2 years.
You need = We design: Provide Personal- Customized led offer.
Price Advantage:
We have the best competitive price at the market, also have the same even better quality
Quality advantage:
From material to finished product, from design to produce, we control all steps,that's the guarantee of the quality and reliability
Service advantage:
Better service at same situation, better cooperation at same service.
Performance Advantage:
Best equality, high consistency, big viewing angle, can repair each led lamps
Die Casting Aluminum Cabinet

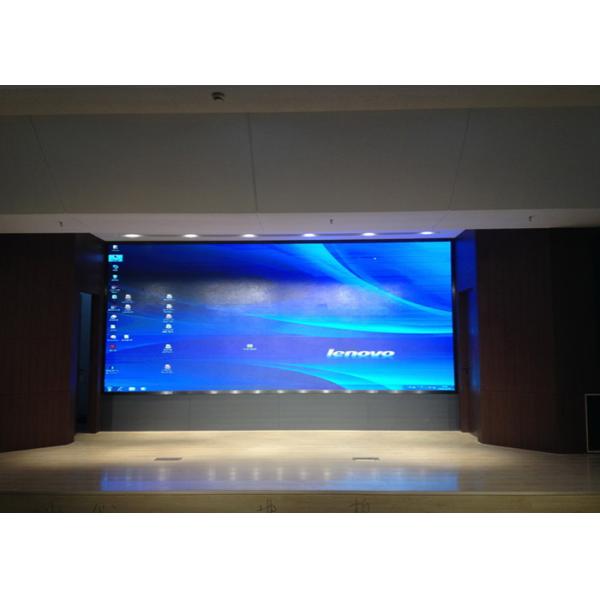

Application Range:indoor or outdoor rental business, support hanging
Structure:with back door,cooling fan,small position guiding pillar,side locks,and hanging design,precision die-casting cabinet suit for fix installation and rental projects, light weighted, fast assemble and easy maintenance,most use in rental business.
